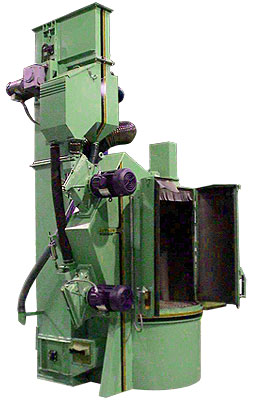

Our compact “stretch” design saves shop space, yet enables batch finishing of racked parts or tall components up to 47 inches in height. The GWB-402T has two 10 HP blast wheels mounted at the optimum angles and distances for total coverage of the work envelope. The 40 inch diameter heavily armored rotary table has a 2,000 pound weight capacity. Our cabinet interior is also heavily armored with cast NI-HARD and manganese steel plate protection of areas directly opposite the blast wheel, plus there is a full rubber cabinet lining.

Guyson’s advanced media reclamation system includes a scalping sieve, our fine-tunable cascade airwash separator, plus a cyclone separator. This sensitive reclaim is essential for the successful use of microscopic media in non-destructive cleaning and many cosmetic finishing applications.

The GWB-402T is supplied with a freestanding Guyson cartridge-type dust collector that automatically sequences reverse jet pulsing of the filters to maintain their efficiency. An easy-to-read manometer gauge helps you monitor the collector’s performance.

Our touch-screen panel interface streamlines the system’s controls, eliminates wearable electrical parts and simplifies machine functions with graphics, text instructions and prompts to assist the operator.
